Description

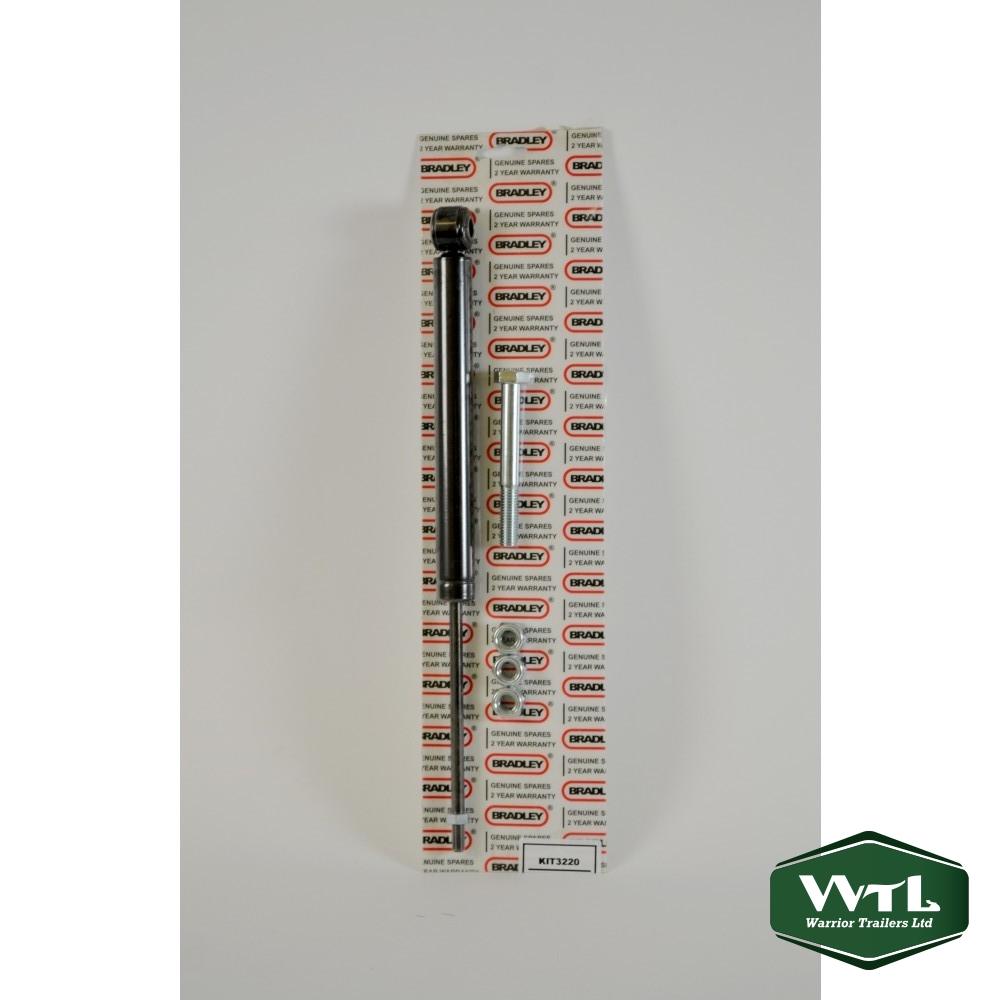

-Bradley Doublelock (Kit3220) 1700kg Damper.
-Rod has a thread on end (nut included).
-Body has 12mm Diameter hole.
-Includes replacement fixing bolt and 3 locking nuts.
Designed for use on the following couplings:- Bradley:
-HU3H.
-HU8H.
-EH17.
-1800s.
Measurements:
-Overall Length = 400mm (15 3/4″).
-Body Length = 240mm (9 1/2″).
-Body Dia = 24mm (15/16″).
Manufacturers Part No: Bradley–KIT3220 /AL-KO–185006915
**Please note: You will need to re-use the old damper extension ** (Old damper may read 115193 OR 01 22 115 104 OR 01 22 105 100)
