Description

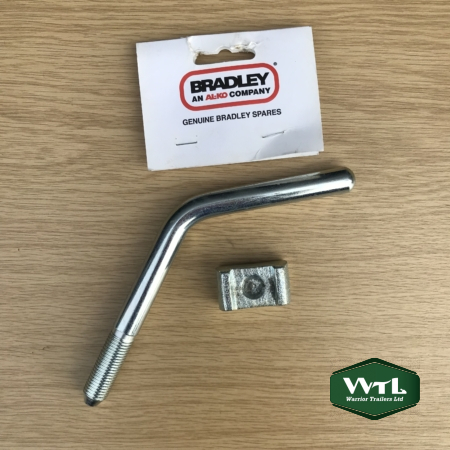

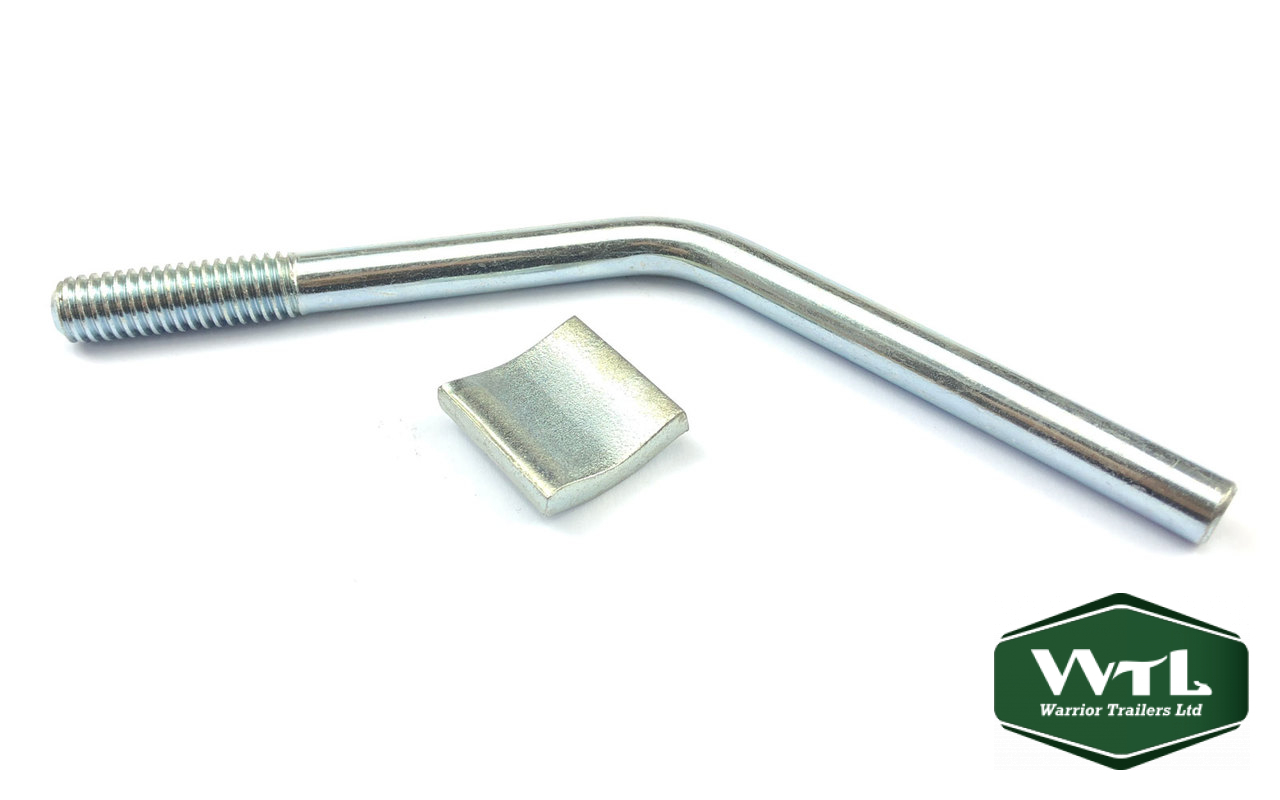

Bradley handle and pad for the HU3/HU4 & HU5 range of couplings manufactured before April 2000.
Designed for use with the following couplings with 42/43mm jockey wheel.
Hydratow Range:
-HU3L – 900kg.
-HU3 – 1400kg.
-HU3H – 1700kg.
-HU3 – 2000kg.
-HU3HE – 2750kg.
-HU4 – UP TO 2700kg.
-HU5- UP TO 2700kg.
The handle is screwed into the side of the coupling’s casting, The Pad is inserted to spread the load and to also grip the jockey wheel.
Measurements:
-Handle diameter – 1/2″.
-Thread 1/2″ x 12TPI (1/2″ BSW).
-Overall length of threaded section – 115mm.
-Overall length of non threaded section – 105mm.
-Overall Length including thread – 220 mm.
Manufacturer’s Part No. Kit 3350 / 185055517
