Description

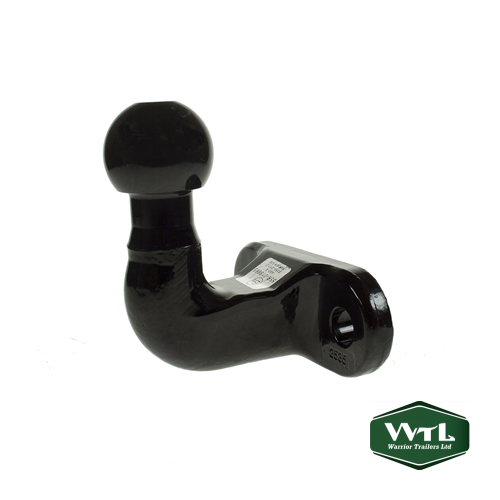

MP5005B E Approved High Reach 50mm Towball Black
-E approved high reach 50mm towball provides clearance for caravan couplings with integral stabiliser (e.g. AL-KO & Winterhoff).
-D Value : 17.2Kn.
-S Value : 350kg.
-Standard 90mm fixing holes.
-2 x M16 mounting bolt fixing holes.
-Approval No: E11 55R-019665.
Fitting Instructions:
-Use only BS3692 grade 8.8 H.T. bolts with lock washers.
-Torque to 240 Nm.
-Check torque again after first use and regularly thereafter.
–UN/ECE Regulation 55 has been introduced to replace EC94/20 towbar regulation. Regulation 55 is fundamentally similar to EC94/20, but with additional test and administration requirements. All of our towballs and ball & pin hitches are approved to Reg 55.
