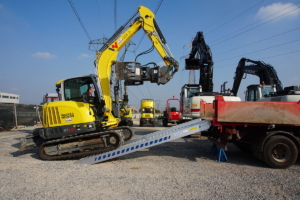

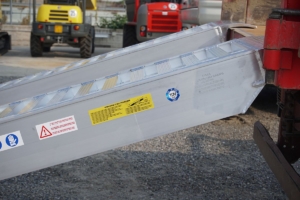

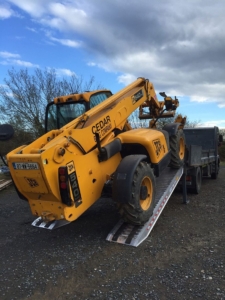

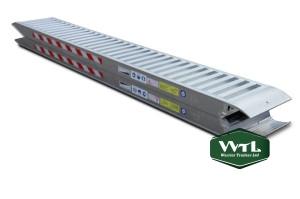

5000 to 11200kg Plant & Machinery Ramps

Our most popular ramps are available to purchase through our online shop. If you don’t find what you are looking for or have specific requirements please contact us with details of the application, Height that the ramps will need to go up to, The Weight of the machine or implement, and the type of connection you require.

Below is a table showing the different specifications of our standard ramps.

Technical Specifications

CODE WITHOUT EDGES	LOADING CAPACITY PAIR IN KG / WHEELBASE 1500 mm	LOADING CAPACITY PAIR IN KG / WHEELBASE 1750 mm	LOADING CAPACITY PAIR IN KG / WHEELBASE 2000 mm	LENGTH (mm)	INTERNAL WIDTH (mm)	EXTERNAL WIDTH (mm)	WEIGHT Pair (kg)
H190/15S	11200	11200	11200	1500	500	610	68
H190/20S	10800	11000	11000	2000	500	610	85
H190/25S	10400	10800	10800	2500	500	610	104
H190/30S	10200	10500	10500	3000	500	610	122
H190/35S	9700	10450	10450	3500	500	610	140
H190/40S	7700	8580	9650	4000	500	610	163
H190/45S	6400	6980	7680	4500	500	610	180
H190/50S	5450	5870	6360	5000	500	610	200

CODE WITH EDGES	LOADING CAPACITY PAIR IN KG / WHEELBASE 1500 mm	LOADING CAPACITY PAIR IN KG / WHEELBASE 1750 mm	LOADING CAPACITY PAIR IN KG / WHEELBASE 2000 mm	LENGTH (mm)	INTERNAL WIDTH (mm)	EXTERNAL WIDTH (mm)	EDGES HEIGHT (mm)	WEIGHT Pair (kg)
H190/15B	11200	11200	11200	1500	500	595	43	68
H190/20B	10800	11000	11000	2000	500	595	43	85
H190/25B	10400	10800	10800	2500	500	595	43	104
H190/30B	10200	10500	10500	3000	500	595	43	122
H190/35B	9700	10450	10450	3500	500	595	43	140
H190/40B	7700	8580	9650	4000	500	595	43	160
H190/45B	6400	6980	7680	4500	500	595	43	174
H190/50B	5450	5870	6360	5000	500	595	43	196

£enquire

excluding VAT

Contact us for more info
