Trailer Ramps

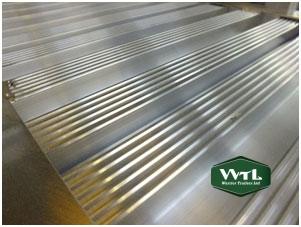

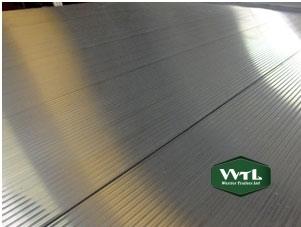

Trailer Ramps are available with large or small grips. Small Grips are suitable for use with small plastic wheels which can get stuck on the larger grips on our standard ramps.
Our most popular ramps are available to purchase through our online shop. If you don’t find what you are looking for or have specific requirements please contact us with details of the application, Height that the ramps will need to go up to, The Weight of the machine or implement, and the type of connection you require.
Below is a table showing the different specifications of our standard ramps.
| CODE WITHOUT EDGES | LOADING CAPACITY PAIR IN KG / WHEELBASE 1000 mm |
LOADING CAPACITY PAIR IN KG / WHEELBASE 1500 mm |
LOADING CAPACITY PAIR IN KG / WHEELBASE 2000 mm |
LENGTH (mm) | EXTERNAL WIDTH (mm) | WEIGHT Pair (kg) |
|---|---|---|---|---|---|---|
| H85/10S | 3300 | 3300 | 3300 | 1000 | 345 | 16 |
| H85/15S | 3300 | 3300 | 3300 | 1500 | 345 | 22 |
| H85/20S | 3300 | 3300 | 3300 | 2000 | 345 | 29 |
| H85/24S | 2345 | 3300 | 3300 | 2400 | 345 | 36 |
| H85/30S | 1740 | 2325 | 2790 | 3000 | 345 | 44 |
| H85/35S | 1375 | 1720 | 1970 | 3500 | 345 | 50 |
£400.00 for 6′
£450.00 for 8′
excluding VAT
