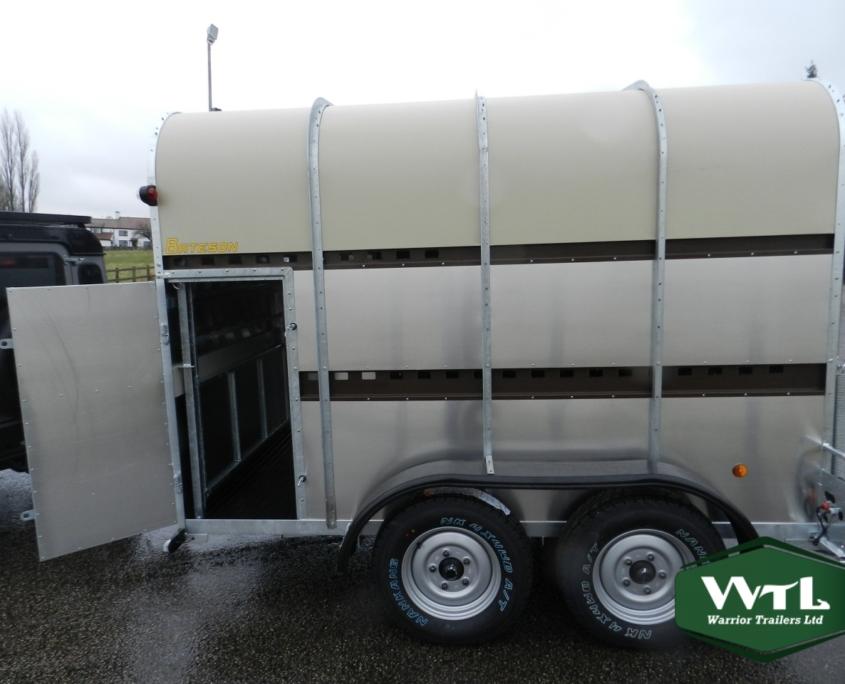

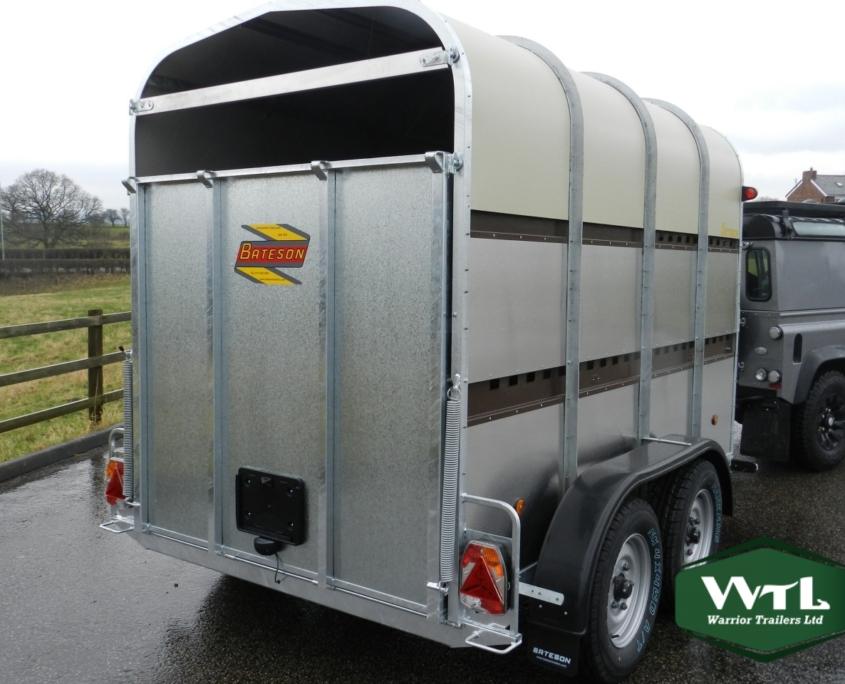

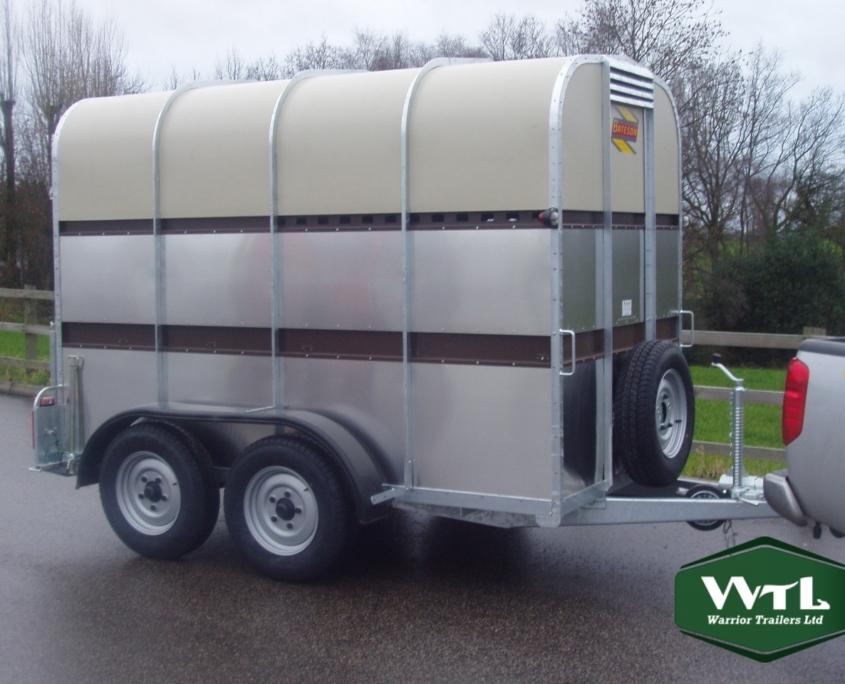

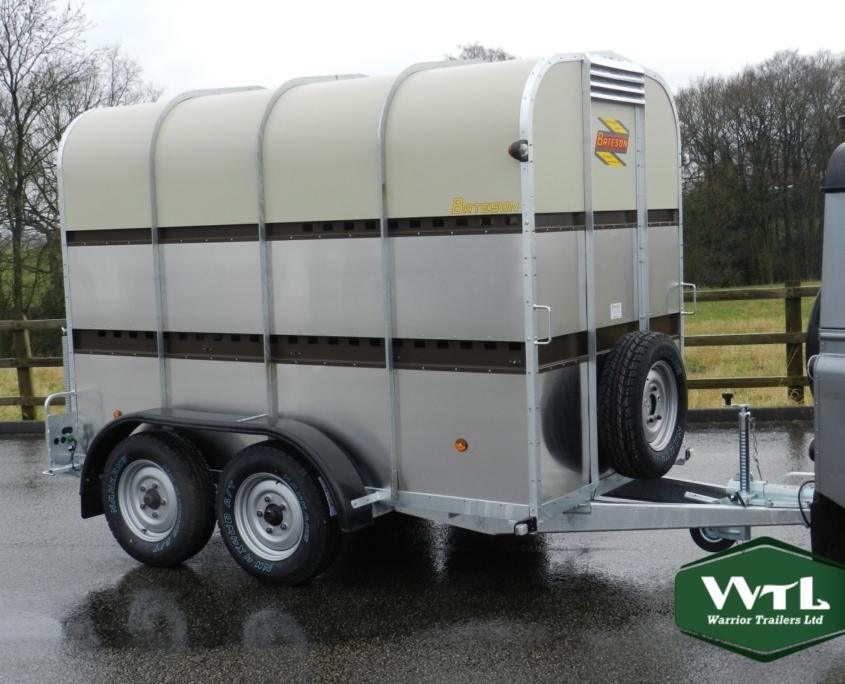

10′ x 5’8 Livestock Trailer with increased headroom (can accommodate horses)

Model 45HB is a medium sized Livestock Trailer with increased headroom (7′) to enable it to be used for horses. The 45HB is available with a timber ramp, breast bar and divider rail as options, but it is mainly designed for livestock for use with 4-wheel drive vehicles.

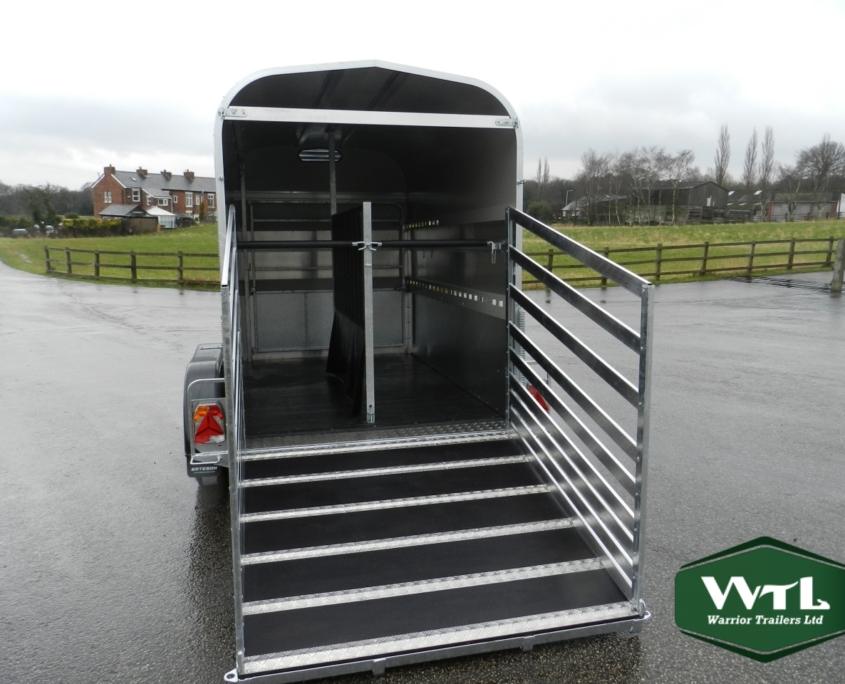

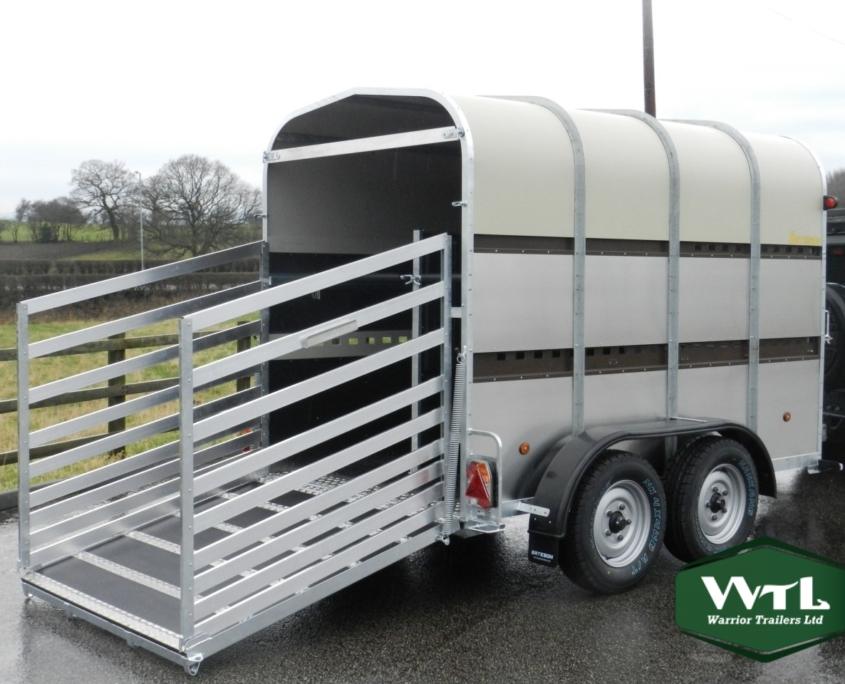

All models have a hot dipped galvanised chassis and are panelled with 2mm toughened alloy sides and a plastic coated galvanised steel roof. The floor is 18mm Phenol coated panels covered with aluminium tread-plate. A phenol coated timber ramp is standard and is more suitable for horses but a folded tread-plate ramp can be fitted as an alternative.

The 45HB is fitted with full width independent suspension axles and auto-reversing brakes. A front jockey wheel, locking hitch, ramp lifting springs and a spare wheel are all standard.

A cross division gate is available as an option. Maximum permitted pen lengths are 12′ for cattle, 10′ for sheep and pigs and 8′ for calves. The 45HB is available with simple lift out sheep decks with a rear ramp section.

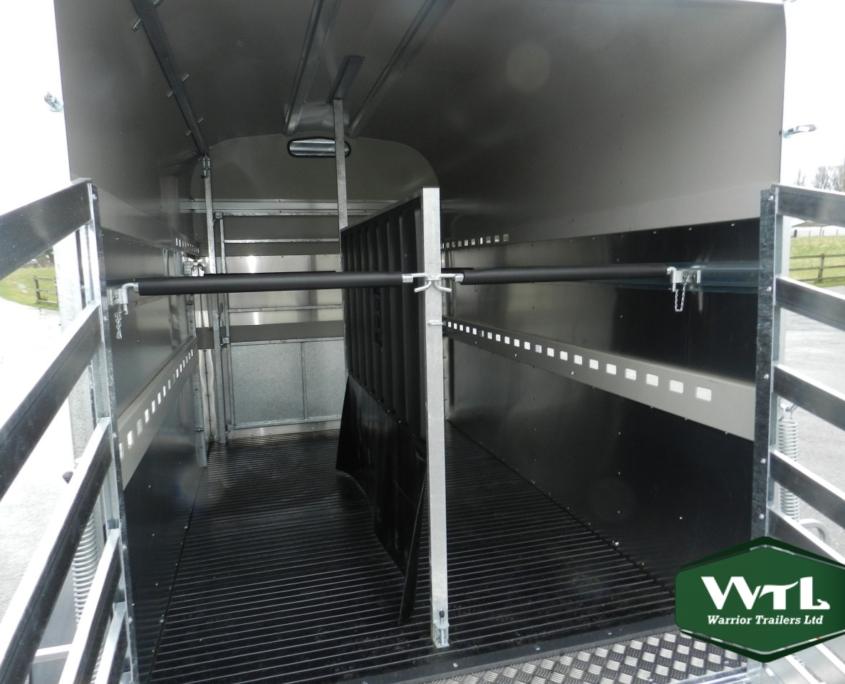

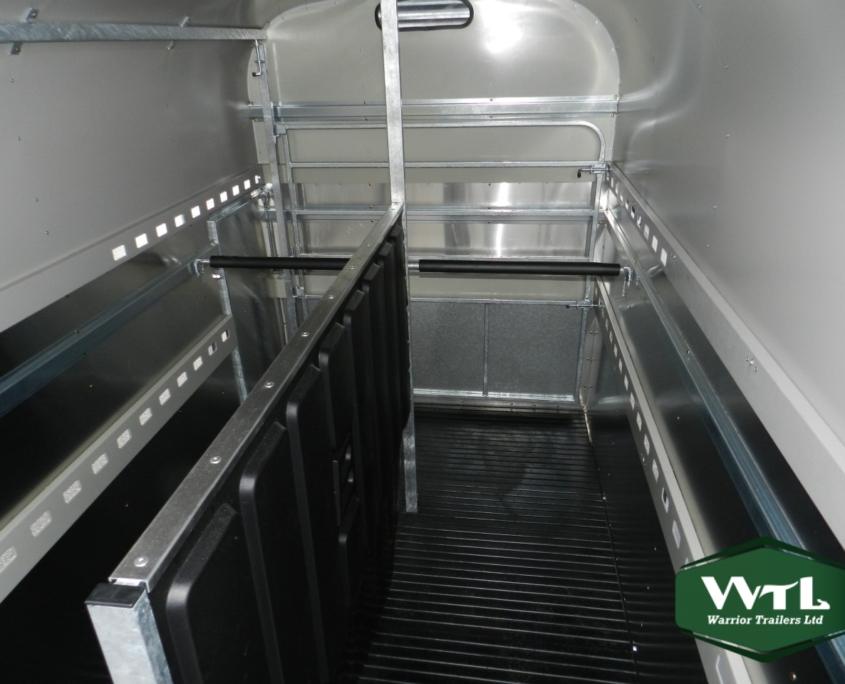

A centre partition, padded breast bars and removable rubber floor pannels are available as options when used for horses.
