7′ x 4′ Small single axle general purpose platform trailer

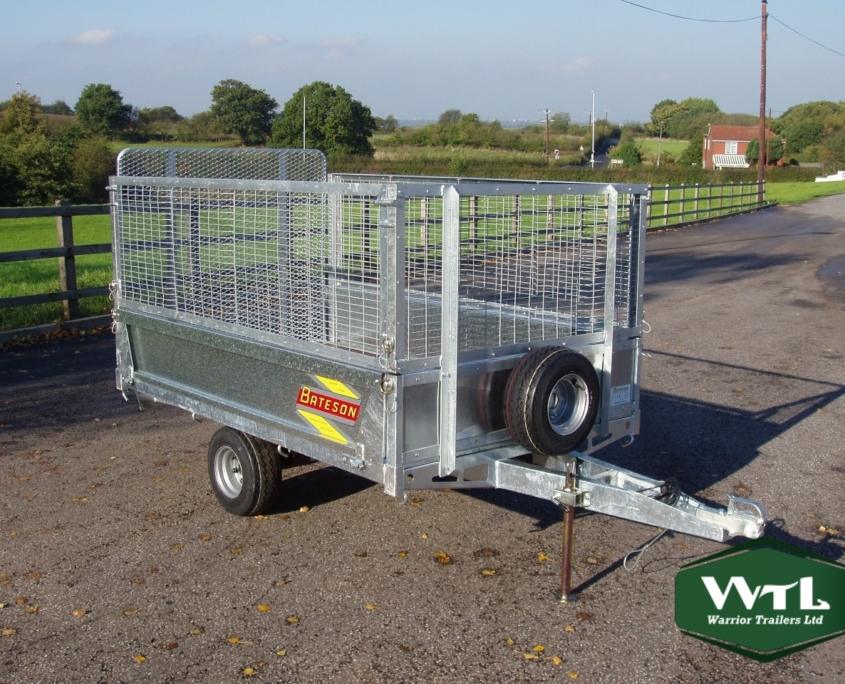

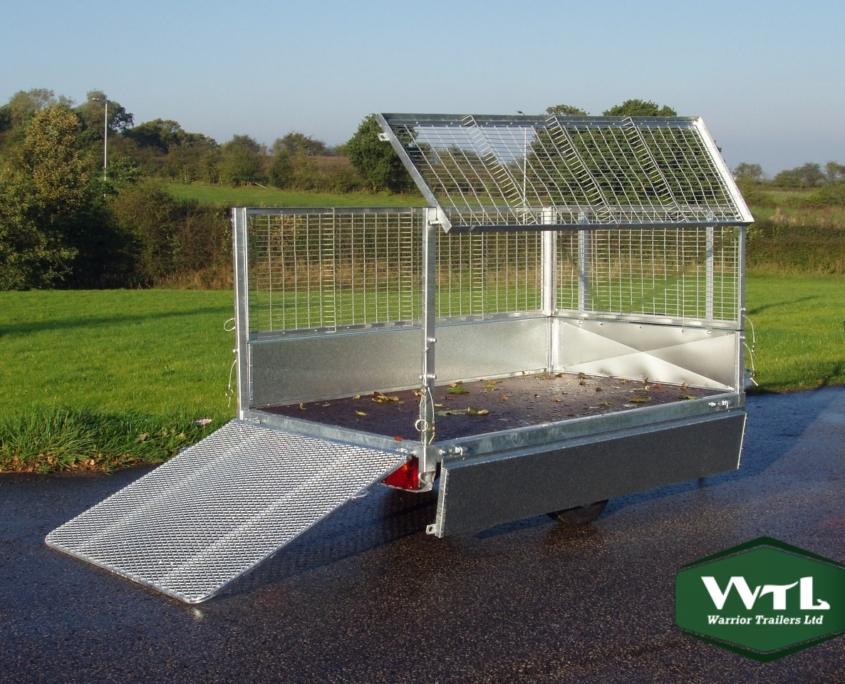

Model shown with ramp tailboard

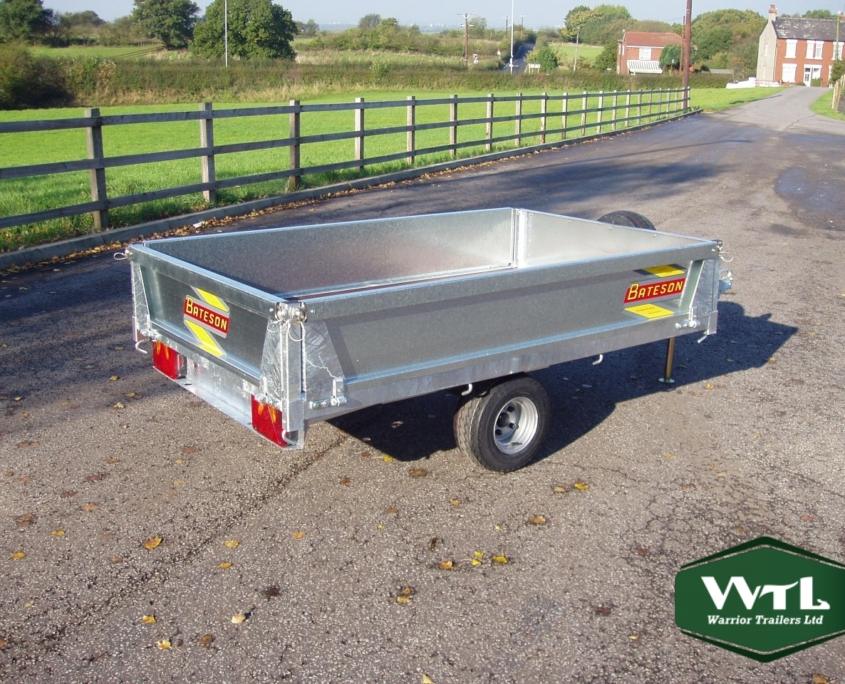

Model 520 is a lightweight fully galvanised general purpose trailer, for use on or off road.

With a gross weight of 550kg, it does not require overrun brakes and is suitable for use behind most cars, quad bikes and small tractors.

Independent rubber suspension is fitted with 16.5 -6.5 x 8 wide tyres, for high speed use as well as minimising ground pressure. The body size of 2.l x l.25 metres is large enough to accommodate the larger quad bikes, motorcycles and ride on mowers, making the trailer very versatile for a wide range of applications.

The construction is of a similar heavy duty standard to that of our larger trailers, with an 18mm non slip phenol coated floor and 30cm high hinged sides and tailboard folded from 2mm pre galvanised steel, with lift out front panel and rear corner posts.

Standard equipment includes independent rubber suspension, cast 50mm lockable ball hitch, front prop stand, rear lights, stop/tail light and indicators and 8 rope hooks.
