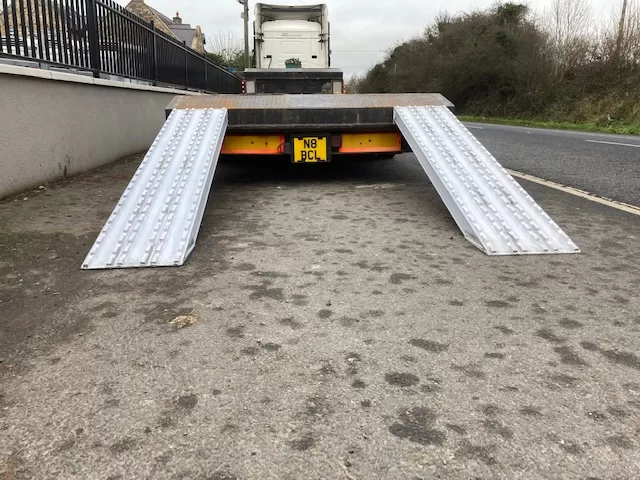

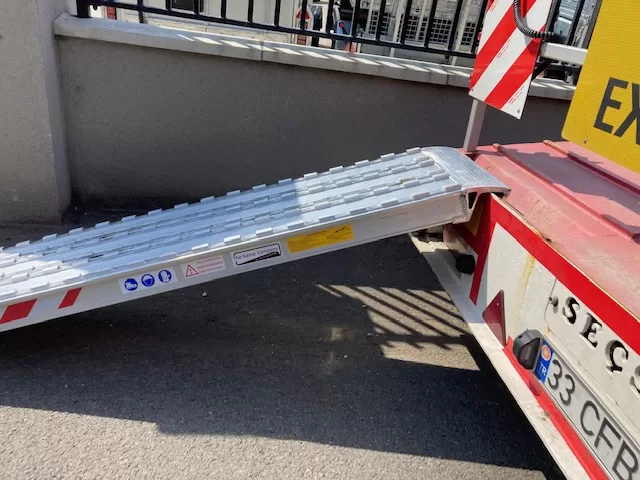

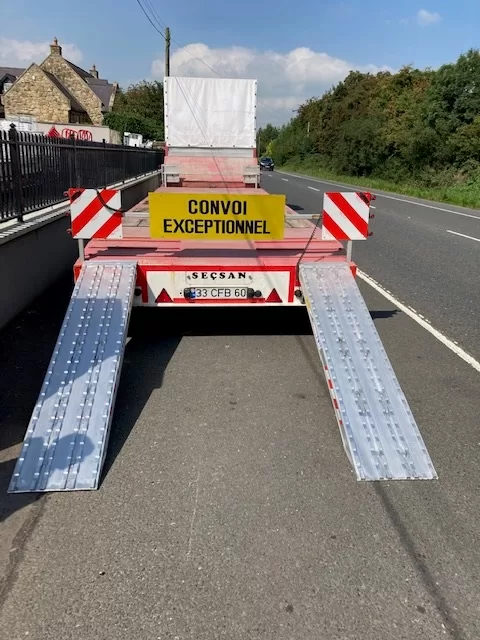

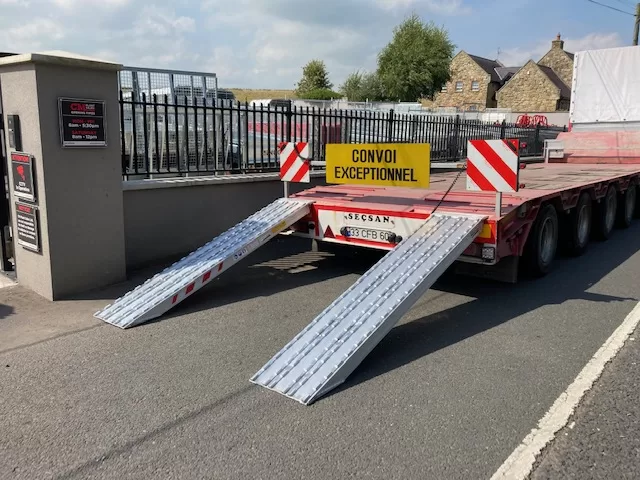

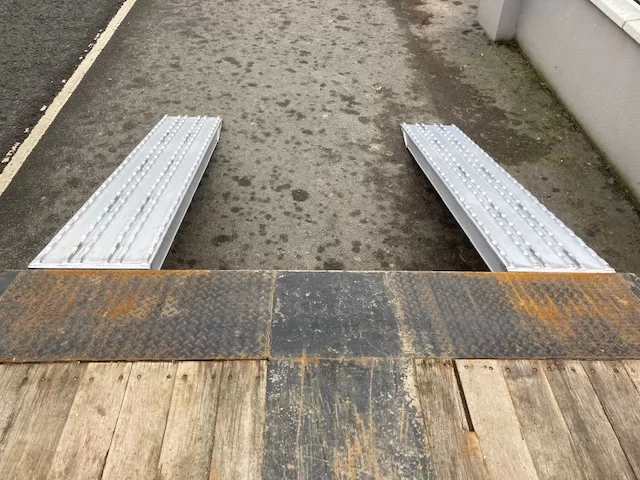

HEAVY DUTY ALUMINIUM RAMPS FOR ARTICULATED TRAILERS AND PLANT

Our most popular ramps are available to purchase through our online shop. If you don’t find what you are looking for or have specific requirements please contact us with details of the application, Height that the ramps will need to go up to, The Weight of the machine or implement, and the type of connection you require.

Below is a table showing the different specifications of our standard ramps.

Technical Specifications

CODE	LOADING CAPACITY PAIR IN KG / WHEELBASE 1500 mm	LOADING CAPACITY PAIR IN KG / WHEELBASE 1750 mm	LOADING CAPACITY PAIR IN KG / WHEELBASE 2000 mm	LENGTH (mm)	EXTERNAL WIDTH (mm)	WEIGHT Pair (kg)
HD115/15S400	20000	20000	2000	1500	400	74
HD115/20S400	18000	18000	18000	2000	400	96
HD115/25S400	14000	14700	15435	2500	400	118
HD115/30S400	11200	11800	12400	3000	400	140
HD115/35S400	10200	10915	11670	3500	400	161
HD115/40S400	6900	7590	8350	4000	400	182
HD115/20S450	21000	21000	21000	2000	450	114
HD115/25S450	19900	20800	21000	2500	450	139
HD115/30S450	15500	16585	17700	3000	450	164
HD115/35S450	13000	13910	14880	3500	450	189
HD115/40S450	10900	12000	13190	4000	450	214

CODE	LOADING CAPACITY PAIR IN KG / WHEELBASE 1500 mm	LOADING CAPACITY PAIR IN KG / WHEELBASE 1750 mm	LOADING CAPACITY PAIR IN KG / WHEELBASE 2000 mm	LENGTH (mm)	EXTERNAL WIDTH (mm)	WEIGHT Pair (kg)
HD115/15S400	22000	22000	22000	1500	450	96
HD115/20S450	25000	25000	25000	2000	450	114
HD115/25S450	23000	23920	24870	2500	450	139
HD115/30S450	19000	20000	20950	3000	450	164
HD115/35S450	16000	17120	18320	3500	450	189
HD115/40S450	13200	14520	15970	4000	450	214
HD115/20S600	39000	39000	39000	2000	600	148
HD115/25S600	34000	35400	37500	2500	600	181
HD115/30S600	26800	28600	30000	3000	600	215
HD115/35S600	21000	22450	24000	3500	600	246
HD115/40S600	17500	18900	20000	4000	600	281

£enquire

excluding VAT
